NBReader Fast 2

Product Code

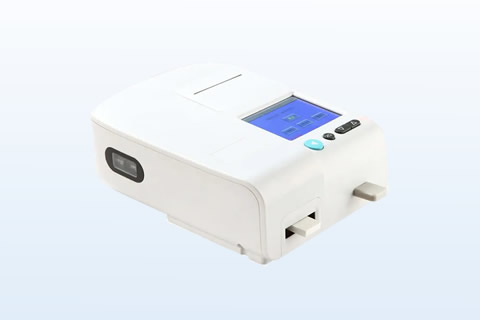

NBReader Fast 2 is a new Point-of-Care analyzing system. It is based on scanning the image of the test strip to produce digitalized data for all rapid tests.

RINGBIO NBReader® Fast 2 is an innovative new reading system for rapid test cards or test strips based on immunochromatography technology. With this reader, users can obtain rapidness, high sensitivity, repeatable detection and avoiding mistakes by visual interpretation.

Technical Data of NBReader Fast 2

Parameters Specification
Weight ~ 1.0 kg
Dimension 210mm×175mm×75mm
Power 100 -240V, 50/60Hz, 12V DC
Display 3.5 inch touch screen
Interface USB, Ethernet, Wifi, GPRS
Working environment 5-40oC, RH 10%-70%
Reading per test <5s
Test C.V <1%
Internal storage 50000 entries

built-in thermal printer

Weavelength 365nm/610nm/customized

The difference between NBReader Q3 and NBReader Fast 2

  • NBReader Q3 system has automatic strip injection and rejection function, which is not installed in Fast 2
  • NBReader Q3 supports mouse and keyboard operation, while Fast 2 supports built-in key pad and fingertip touching.
